Moisture testing and sorting system
Are you still hesitating? Get samples first and contact us!
Classification:
Key words:
Moisture Test
- Product Description
-
Testing Principles:
The O-H bonds of water molecules absorb near-infrared radiation at several specific wavelengths. The three filters on the rotating filter disk inside the MCT moisture tester produce these absorption wavelengths and non-absorption wavelengths, which alternately reflect from the product surface to the internal optical components. The light signals converted into electronic pulses are calculated through a ratio algorithm to determine the proportional moisture content, which is then corrected for bias and span to become the direct moisture content. A specially designed filter reflection signal algorithm eliminates deviations caused by the aging of optical components and the different reflective characteristics of materials.
Features:
The testing is non-contact, continuous, and real-time; the output signal can be connected to an automated control system for automated closed-loop control of production.
Typical infrared absorption molecular bonds include:
O–H bonds of water and alcohol, C–H bonds of fats and hydrocarbons, N–H bonds of proteins, ammonia, and amines.
Main Applications:
Wood Industry: • Particleboard • Fiberboard • Medium Density Fiberboard • OSB Board • Hardboard Food Processing: • Snacks • Pet Food • Coffee • Biscuits • Starch • Soy Products • Cereal Foods • Dairy Products
Tobacco Industry: • Leaves • Stems • Cut Tobacco • White Leaf Tobacco • Expanded Tobacco • Finished Tobacco
Papermaking and Coating: • Surface Coating Moisture • Re-moisture • Pressure-sensitive Adhesive Coating • Hot Melt Adhesive • Carbonless PaperOnline Moisture Testing and Sorting System------

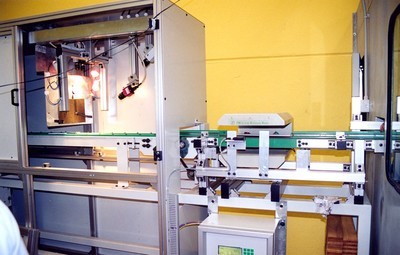

Applied to moisture detection and sorting of wooden floors, engineered boards, and lumber building materials.
- Non-contact online testing;
- Longitudinal maximum speed of 600 meters/minute, lateral up to 200 pieces/minute;
- Can sort and mark different moisture content;
- Microprocessor control system, user-friendly interface;

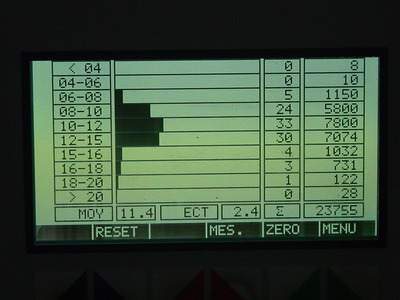

- Statistical and reporting functions;
- Obtained various global certifications.
Portable moisture tester
The laser on-line size measurement system is an industrial measurement product combining software and hardware. In terms of hardware, the latest laser measurement technology is used for non-contact measurement, the sampling frequency is 2000HZ, the resolution is 0.01mm, which is more reliable than the traditional contact pressure wheel measurement, and the maintenance cost is lower. The temperature stability of the laser probe mounting frame is extremely high, maintenance-free, and does not require frequent cleaning of the probe. At the same time, because of non-contact, even if applied to high-speed production lines, there is no need for frequent calibration. There is no blind area in the whole measurement process, realizing the whole measurement from edge to edge
Moisture testing and sorting system
The laser on-line size measurement system is an industrial measurement product combining software and hardware. In terms of hardware, the latest laser measurement technology is used for non-contact measurement, the sampling frequency is 2000HZ, the resolution is 0.01mm, which is more reliable than the traditional contact pressure wheel measurement, and the maintenance cost is lower. The temperature stability of the laser probe mounting frame is extremely high, maintenance-free, and does not require frequent cleaning of the probe. At the same time, because of non-contact, even if applied to high-speed production lines, there is no need for frequent calibration. There is no blind area in the whole measurement process, realizing the whole measurement from edge to edge
