InSenXe Infrared Moisture Detector
Release time:
2025-01-14
Infrared Non-contact Quick Moisture Tester
The InSenXe infrared tester is a product of the vast market demand in China and the new generation of optoelectronic technology in Europe, and our company holds complete ownership.
An online non-contact quick tester based on infrared absorption spectroscopy, capable of testing moisture containing -OH bonds and water-based coatings, polymer material coatings containing -CH bonds, adhesive coatings, film thickness, etc.
Features:
Easy to use, maintenance-free;
Various display methods from simple digital display to TCP/IP network connection:
Remote monitoring can be achieved * Intelligent integrated tester
Wide measurement dynamic range
Interchangeable probes
Universal standard aluminum profile mounting bracket
Technical parameters:
Resolution: 0.01 Accuracy:
Moisture testing range: 0-99%
Coating testing range: 0-600gsm (depending on different materials)
Accuracy: +/-1% calibration range (depending on different applications)
Repeatability: +/-0.5% calibration range Stability: does not require calibration for one year
Operating environment temperature: 0-45 °C
Testing distance: 15-35cm
Calibration product code: can connect to computer without restrictions
Response time: 0-999 seconds damping adjustable, 0-99 seconds accumulation adjustable
Power supply: 24VDC 35W (maximum)
Output: 4-20mA (isolated), RS232/485
Dimensions: 260×170×150 (length width height mm, maximum)
Weight: 4.5kg
Structure: Cast aluminum and plastic options available

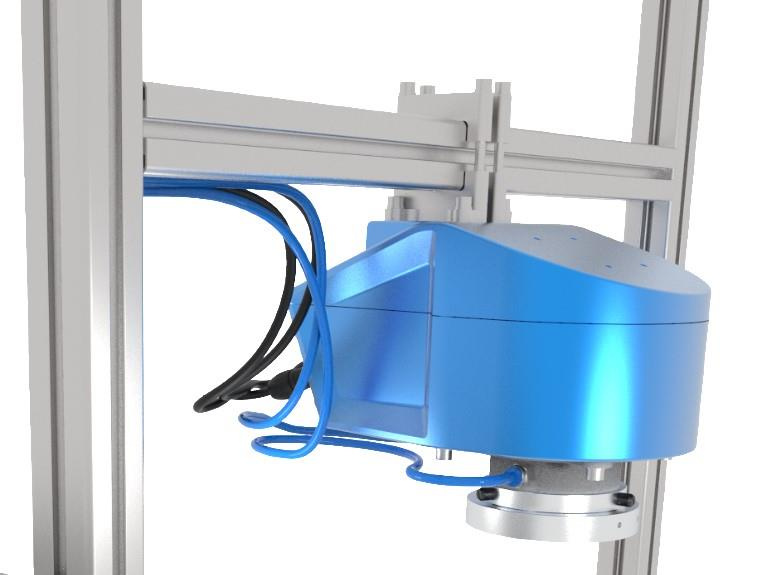

Installation: 4040 aluminum profile
Protection standard: IP65
Options: Can be externally connected to compressed air cooling stainless steel or user-defined casing
