LIMAB [Ban Lai] Online Specification Testing System
Release time:
2025-01-14
Laser Online Size Specification Measurement System
Product Introduction
The Laser Online Size Specification Measurement System is an industrial measurement product that combines hardware and software. In terms of hardware, it uses the latest laser measurement technology for non-contact measurement, with a sampling frequency of 2000HZ and a resolution of 0.01mm, making it more reliable than traditional contact wheel measurements, and it has lower maintenance costs. The temperature stability of the laser probe installation frame is extremely high, maintenance-free, and does not require frequent cleaning of the probe. Additionally, because it is non-contact, it does not require frequent calibration even when applied to high-speed production lines. The entire measurement process has no blind spots, achieving full measurement from edge to edge.

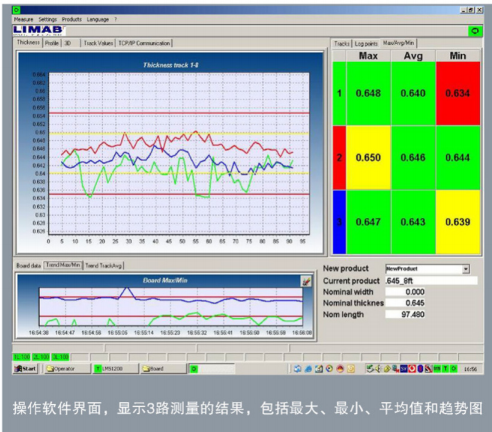

The accompanying software for the product is based on the Windows operating system, featuring powerful functions, including 2D or 3D real-time images, alarm settings, trend chart and historical record viewing, and displaying or printing statistical data.
Product Features
Wide Adaptability
1. Multi-channel measurement - Users can decide the number of measurement tracks (3-24) to measure the thickness variation at the smallest intervals.
2. Width adjustment - The probes on both sides can automatically adjust to the edges of the material.
3. Scanning measurement - The probe scans transversely back and forth across the material.
4. Single-point measurement - Economical fixed-point measurement.
Design for Harsh Environments

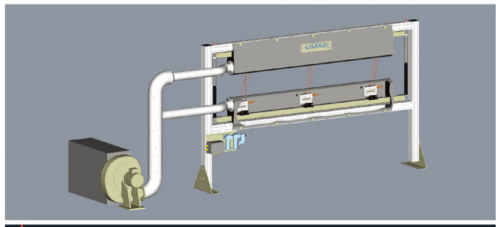

Depending on the application environment, a humorous compressed air blowing system can be used to keep the probe clean and cool.

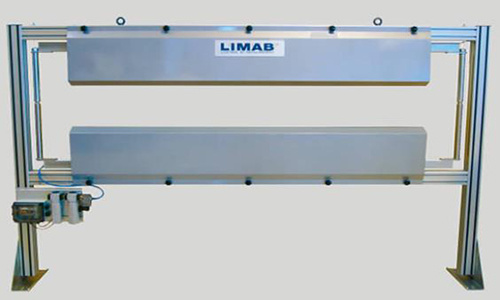

The measurement frame can be easily embedded in any production line equipment.
Technical Parameters
Measurement Range (adjustable as required): 0.1-200mm
Accuracy: ±0.03mm±2
Resolution: 0.01mm
Sampling Frequency: 2000HZ
Temperature Range: 0-40℃
Laser Probe (Short Distance) Size: 162×108×42mm (MR type long-distance probe available)
Power: <1mW
Wavelength: 670nm
Laser Class (IEC825): 2
Protection Class: IP65, NEMA 4X
Company Profile
Guangzhou Tongfei Technology Co., Ltd. was established in 2001, specializing in the agency of imported automation testing and control equipment from Europe and the United States, and providing related product solutions. The Laser Online Size Specification Measurement System is one of the products we represent. This system is imported from LIMAB. LIMAB is headquartered in Gothenburg, Sweden, with subsidiaries in the UK, Germany, and the USA. We are the only agent for LIMAB in China.
LIMAB has a long history in the development of laser sensors and non-contact measurement systems. This business started in 1979 and has now developed into a world leader based on laser online size measurement systems.
